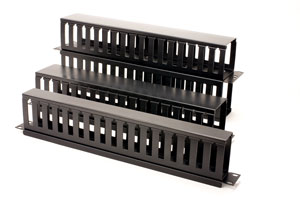

Horizontal Cable Management
Optimize closet space and organize your cabling system with any of OCC’s horizontal cable managers. This complete line of horizontal cable management provides a versatile selection for maintaining cable runs and preserving connectivity components’ lifespan.
| Part Number | Description | Download Drawing | |
|---|---|---|---|
| 19" Cable Management Panel, 1 RU, Rings | CM101.pdf | CM101.zip | |
| 19" Cable Management Panel, 1 RU, Velcro belts | CM102.pdf | CM102.zip | |
| 19" Cable Management Panel, 2 RU, Rings | CM103.pdf | CM103.zip | |
| Front/Rear Side Towel Bar, 1 RU | CM104.pdf | CM104.zip | |
| Cable Management Tab, Velcro belts | CM105.pdf | CM105.zip | |
| 19" Front Side Cable Organizer, Intra-bay, 1.75", 1 RU | CO17519.pdf | CO17519.zip | |
| 19" Front Side Cable Organizer, Inter-bay, 1.75", 1 RU | CO17519L.pdf | CO17519L.zip | |
| 19" Front Side Cable Organizer, Intra-bay, 3.5", 2 RU | CO3519.pdf | CO3519.zip | |
| 19" Front Side Cable Organizer, Inter-bay, 3.5", 2 RU | CO3519L.pdf | CO3519L.zip | |
| 19" Cable Organizer, Single-sided with Cover, 3.5", 2 RU | COMB3519.pdf | COMB3519.zip | |
| 19" Cable Organizer, Double-sided with Cover, 3.5", 2 RU | COMBD3519.pdf | COMBD3519.zip | |
| 19" Cable Support Bar Kit for EIA mounting | SB1719.pdf | SB1719.zip | |
| 19" Horizontal Cable Manager, finger style, 1 RU single-sided | CM401.pdf | CM401.zip | |
| 19" Horizontal Cable Manager, finger style, 1 RU double-sided | CM402.pdf | CM402.zip | |
| 19" Horizontal Cable Manager, finger style, 2 RU single-sided | CM403.pdf | CM403.zip | |
| 19" Horizontal Cable Manager, finger style, 2 RU double-sided | CM404.pdf | CM404.zip | |
Vertical Cable Management
To keep cables neatly arranged and aesthetically appealing, OCC offers vertical cable management options to organize closet space and provide additional storage space for cable routing. Whether installing cabinets in a data center or open frame racks in an equipment room, using OCC’s vertical options upgrades any installation.
| Part Number | Description | Download Drawing | |
|---|---|---|---|
| Vertical Cable Management Double Ring for Free-Standing Cabinets | CM201.pdf | CM201.zip | |
| Vertical Cable Manager with Velcro® Belts for 84" Free-Standing Cabinets | CM203.pdf | CM203.zip | |
| Vertical Cable Manager with Velcro® Belts for 72" Free-Standing Cabinets | CM204.pdf | CM204.zip | |
| Vertical Cable Manager with Velcro® Belts for 60" Free-Standing Cabinets | CM205.pdf | CM205.zip | |
| Vertical Cable Manager with Velcro® Belts for 48" Free-Standing Cabinets and 24 RU Wall Cabinets | CM206.pdf | CM206.zip | |
| Double-sided Cable Management Velcro® belt, 13" | VB13.pdf | VB13.zip | |
| Vertical Cable Management, Rack Channel Ring, Pair | RC1.pdf | RC1.zip | |
| Vertical Cable Management, 2" x 4" Cable Ring, Pair | AR24.pdf | AR24.zip | |
| Vertical Cable Management, 4" x 4" Cable Ring, Pair | AR44.pdf | AR44.zip | |
| Vertical Cable Management Double Ring for Open frame racks | CM202.pdf | CM202.zip | |
| Vertical Cable Organizer, 3" x 7′ Double-sided | VCM3.pdf | VCM3.zip | |
| Vertical Cable Organizer, 6" x 7′ Double-sided | VCM6.pdf | VCM6.zip | |
| Vertical Fiber Cable Organizer, 6" x 2′ Double-sided | VFCM6-2D.pdf | VFCM6-2D.zip | |
| Vertical Fiber Cable Organizer, 6" x 2′ Single-sided | VFCM6-2S.pdf | VFCM6-2S.zip | |
| Vertical Fiber Cable Organizer, 6" x 7′ Double-sided | VFCM6-6D.pdf | VFCM6-6D.zip | |
| Vertical Fiber Cable Organizer, 6" x 7′ Single-sided | VFCM6-6S.pdf | VFCM6-6S.zip | |
| "Vortex" 84" Vertical Cable Organizer for Open frame racks and CMR45 Rack Max | CM207.pdf | CM207.zip | |
| Vertical Fiber Cable Organizer, Finger Duct, 36", Single-sided, Side-mount | VCMFD-36SS.pdf | VCMFD-36SS.zip | |
| Vertical Fiber Cable Organizer, Finger Duct, 36", Double-sided, Side-mount | VCMFD-36DS.pdf | VCMFD-36DS.zip | |
| Vertical Fiber Cable Organizer, Finger Duct, 72", Single-sided, Side-mount | VCMFD-72SS.pdf | VCMFD-72SS.zip | |
| Vertical Fiber Cable Organizer, Finger Duct, 72", Double-sided, Side-mount | VCMFD-72DS.pdf | VCMFD-72DS.zip | |
| Vertical Fiber Cable Organizer, Finger Duct, 36", Single-sided, Bridge-mount | VCMFD-36SB.pdf | VCMFD-36SB.zip | |
| Vertical Fiber Cable Organizer, Finger Duct, 36", Double-sided, Bridge-mount | VCMFD-36DB.pdf | VCMFD-36DB.zip | |
| Vertical Fiber Cable Organizer, Finger Duct, 72", Single-sided, Bridge-mount | VCMFD-72SB.pdf | VCMFD-72SB.zip | |
| Vertical Fiber Cable Organizer, Finger Duct, 72", Double-sided, Bridge-mount | VCMFD-72DB.pdf | VCMFD-72DB.zip | |
