19" Shelving
OCC’s product line offers a full selection of shelving options for any open frame relay rack or free standing cabinet requiring 19" mounting applications. Each shelf may be ordered independently or kitted with any OCC enclosure to create a custom configured cabinet or rack.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
23" Shelving
For 23"mounting applications, OCC’s product line offers a variety of shelving options to choose from. As with the 19" shelving, all 23" shelves may be purchased separately or kitted with any OCC rack or cabinet to create a custom solution to meet any network foundation needs.
| Part Number | Description | Dimensions | Load Rating | RU | Shipping Weight | Download Drawing | |
|---|---|---|---|---|---|---|---|

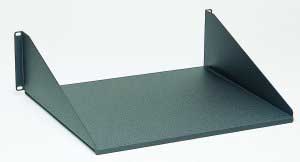

| 1 RU Cantilever shelf | 6.8"D | 44 lbs | 1 | 7 lbs | 9231.pdf | 9231.zip | |
| 2 RU Cantilever Shelf | 10.5"D | 55 lbs | 2 | 7 lbs | 9232.pdf | 9232.zip | |
| 2 RU Vented Cantilever Shelf | 10.5"D | 50 lbs | 2 | 7 lbs | 9232V.pdf | 9232V.zip | |

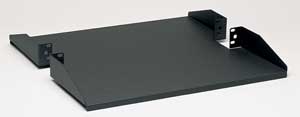

| 2 RU Double-sided Cantilever Shelf | 25.0"D | 90 lbs | 2 | 12 lbs | 9218.pdf | 9218.zip | |

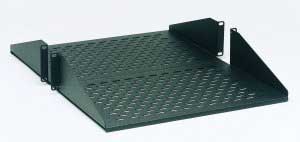

| 2 RU Double-sided Vented Cantilever Shelf | 25.0"D | 85 lbs | 2 | 12 lbs | 9218V.pdf | 9218V.zip | |
| 3 RU Cantilever Shelf | 15.5"D | 66 lbs | 3 | 9 lbs | 9233.pdf | 9233.zip | |
| 3 RU Vented Cantilever Shelf | 15.5"D | 60 lbs | 3 | 9 lbs | 9233V.pdf | 9233V.zip | |

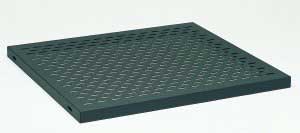

| Four-point Vented Cabinet Shelf | 16.0"D | 220 lbs | 1 | 9 lbs | 9234.pdf | 9234.zip | |
| Four-point Vented Cabinet Shelf | 18.0"D | 220 lbs | 1 | 9 lbs | 9235.pdf | 9235.zip | |
| Four-point Vented Cabinet Shelf | 24.0"D | 220 lbs | 1 | 10 lbs | 9236.pdf | 9236.zip | |
| Vented Sliding Shelf | 16.0"D | 110 lbs | 1 | 12 lbs | 9238.pdf | 9238.zip | |
| Sliding Shelf for Open Frame rack | 16.0"D | 90 lbs | 1 | 12 lbs | 9226.pdf | 9226.zip | |
| Sliding Shelf for 23" Rack Max | 16.0"D | 90 lbs | 1 | 12 lbs | 9229.pdf | 9229.zip | |
| Vented Sliding Shelf | 24.0"D | 110 lbs | 1 | 17 lbs | 9239.pdf | 9239.zip | |
