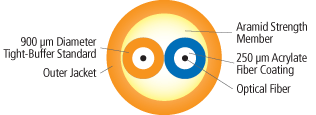

• 1 (simplex) and 2 (duplex) fibers available
• Available with Bend Insensitive Single-mode fiber
• Available in 2.9, 2.0 or 1.6mm diameters
• High performance tight-buffered coating on each optical fiber for environmental and mechanical protection
• Flame-retardant for indoor installations
• Custom jacket colors are available to match connectors. Private labeling on the cable outer jacket is also available
• Compatible with all standard fiber optic connectors
• Resilient and flexible for jumpers, patch cords, and pigtails
• Resilient and flexible for jumpers, patch cords, and pigtails
• Suitable for general purpose indoor use, such as routing connections in patching systems
• Short "patch cord" cables ideal for links between electronic equipment and main fiber optic cables

---

• Resilient and flexible for jumpers, patch cords, and pigtails
• Suitable for general purpose indoor use, such as routing connections in patching systems
• Short "patch cord" cables ideal for links between electronic equipment and main fiber optic cables
• Flame-retardant for indoor installations
• Custom jacket colors are available to match connectors. Private labeling on the cable outer jacket is also available

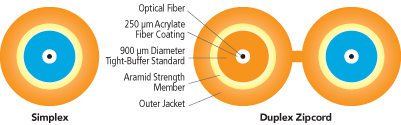

• 1 (simplex) and 2 (duplex) fibers available
• Compatible with all standard fiber optic connectors
• Micro-Assembly cables available in 2.0 or 1.6mm diameters
• High performance tight-buffered coating on each optical finer for environmental and mechanical protection
• Available with Bend-Insensitive Single-mode fiber

---

OCC’s Integrated Solution for Data Centers and Space-Constrained Applications

OCC’s High Density (HD)™ Bend Tolerant cable is perfect for data centers and space-constrained applications. The small diameter of the Bend Tolerant HD cable construction saves space and greatly increases capacity in tray systems, improves cable management and increases cooling efficiency, and reduces cost for under-raised floor cabling systems in data centers. Coupled with OCC’s MT cable assemblies and smaller-footprint HD MT  assette, the new Bend Tolerant HD cable design offers true plug-and-play connectivity for a multitude of applications.

OCC’s High Density Bend Tolerant cables are part of an OCC Integrated Solution. OCC can offer a complete solution universal for data centers and campus installations or wherever the ease of pre-terminated networks is beneficial. OCC offers fiber optic cable assemblies, fiber optic enclosures and adapter plates as well as a complete pre-terminated array of products for easy plug-and-play connectivity.

• Flexible, resilient for interconnect applications
• Small size for dense usage
• For small form-factor duplex connectors, such as MT-RJ
• 900 micron buffer is standard; 600 micron buffer is optional for Riser-rated cables
• Zero Halogen construction available
• 900 micron tight-buffer for excellent mechanical and environmental performance

---

OptiReel cable box saves installers time.  OptiReel i sa self-contained payout box to facilitate storage, handling and pulling of cables.  The packaging greatly reduces set-up time for each pull.  Therefore, the box is ideally suited for cable pulls through building duct systems, walls and ceilings where multiple cables may be pulled together and many relatively short runs need to be installed.

OptiReel cable boxes can be easily stacked and staged together with other types of data cables for faster installations.  The compact boxes contain an internal reel so that cable stands do not have to be used.  Cables in the boxes are marked with decreasing length markings, so that the installer always knows the length of the remaining cable in the box.

OptiReel cable packaging is available for OCC’s simplex and duplex A-Series and D-Series types of cables, either riser-rated or plenum-rated, with 62.0/125, 50/125, or single-mode fibers.
