With more than 2,000 modular connector products, Stewart Connector thrives on new designs for leading edge customers. Stewart pioneered the development of shielded multiport jack systems that eliminate EMI/RFI noise while improving high-speed transmissions. We followed that with the CableJack™, a CAT 5e cable-ready jack for use in Gigabit Ethernet applications, the MICROJACK®, an ultra small form factor for PCMCIA cards, and the CompressorJack™, a low-profile, high-performance stacked jack used to maximize rack densities. Most recently, we released a CAT 6 modular plug that meets/exceeds proposed EIA/TIA requirements.In 1996 Stewart developed and marketed modular connector products with integrated magnetics. Today the customer list for MagJacks™ includes the biggest names in communications and computing with tens of thousands of ports of product shipped each month. MagJack’s success is the combined result of innovative engineering, complete customer focus, a well-developed manufacturing capability, and competitive pricing.
Stewart modular jacks feature selectively plated drawn-wire contacts with low porosity plating for maximum durability. Unique electropolished mating surfaces and patented wire termination technology allows for unmatched plug durability and reliability. Stewart Quality begins with our solid engineering group and manufacturing expertise for modular connector systems. Stewart Connector is ISO 9001 approved.

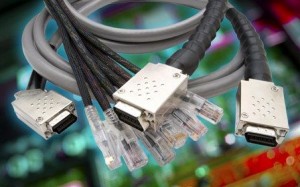

MRJ21 Interconnect System
Glen Rock, PA — Stewart Connector, a division of Bel Fuse Inc., announced the availability of the modular MRJ21 interconnect system, under a license agreement with Tyco Electronics. The cabling system is designed to promote optimal port density in space-constrained telecom and premise wiring applications. The Category 5e cable assemblies simultaneously support VoIP (Voice over Internet), PoE (Power over Ethernet) and GbE (Gigabit Ethernet) while offering installers the ability to connect 24 twisted pairs (12 two-pair or 6 four-pair ports) with just one connection. These Input/Output (I/O) interconnect systems’ double-blade design allows up to 4 times the port density of traditional 2×6 stacked modular jacks (RJ45), and up to 3 times the port density of an RJ21 connector. Devices are available in four connection schemes including six unshielded RJ45 connectors to 45-degree angle MRJ21 connectors, six unshielded RJ45 connectors to straight MRJ21 connector, straight MRJ21 connector to straight MRJ21 connector, and straight MRJ21 connector to 45-degree angle MRJ21 connector. The MRJ21 board-mount receptacle boasts a robust board lock design for superior PCB strain relief, and the cable assemblies provide offset jackscrews to ensure positive latching and secure cable retention. Assemblies are durability tested to 500 cycles. Stewart Connector’s MRJ21 cabling system targets telecommunication and premise wiring applications wherever traditional stacked modular jacks and RJ21 connectors are used. The system may be confidently employed in applications including network closets, core and edge routers, digital cross connects, GbE switches, 10/100BASE-T, and DSLAM. The assemblies allow a connection migration path from such legacy products as punchdown blocks, modular plug breakouts, and standard RJ21 assemblies, and are designed with a die-cast backshells for shielded applications. Fully shielded to reduce EMI emissions, the high-performance modules’ differentially paired footprint and contact layout further reduce crosstalk through built-in compensation. Connectors feature 1 mm pair spacing and 1.5 mm pair-to-pair spacing. Additionally, the dual-row receptacles meet the height requirements of the CompactPCI specification.
